FunnyPlaying Game Boy Advance Laminated ITA Kit

GBA LAMINATED ITA KIT

Laminated panel, No dust , More realistic display effect.

Laminated kits is only applicable to laminated housing found here.

Use the lower screen of DSI to transfer, 240*160 display, the display size is the same as the original panel

At the lowest brightness, the kit power consumption is 0.15w

It has the same display effect as AGS-101, without ghosting, better colors and brighter backlight.

It has a memory brightness function and can adjust the partial display window.

Add touch to adjust brightness

Perfect support for NES game display

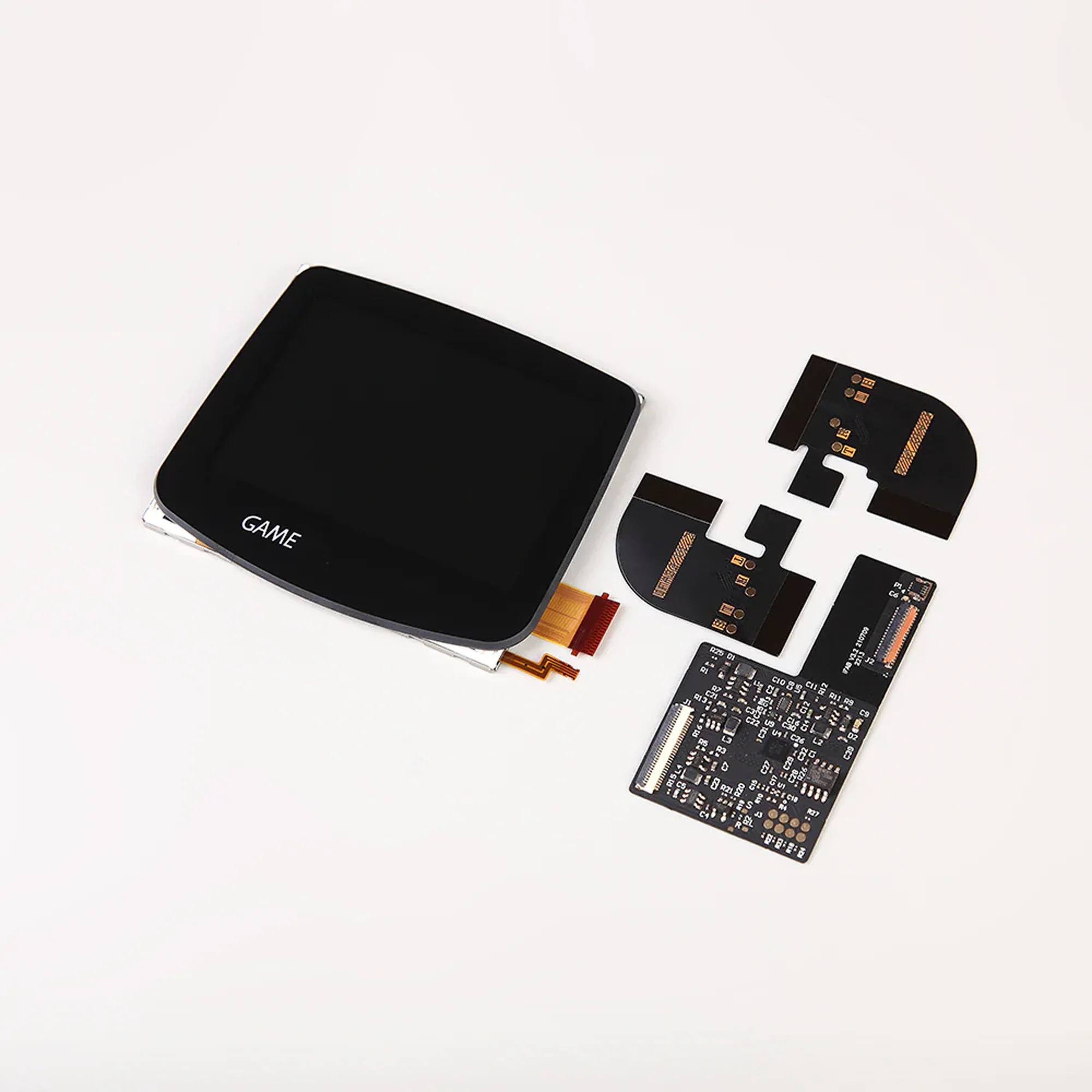

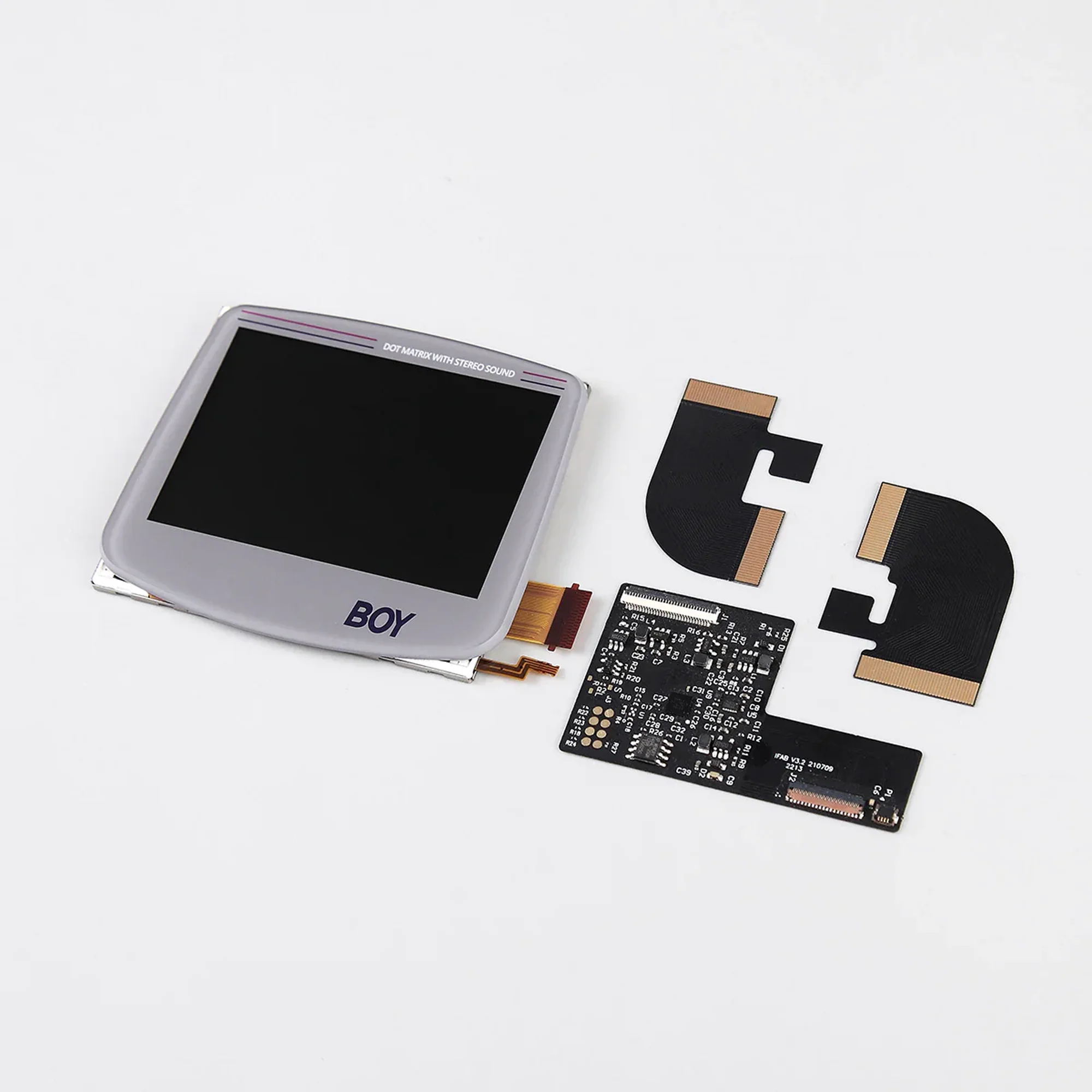

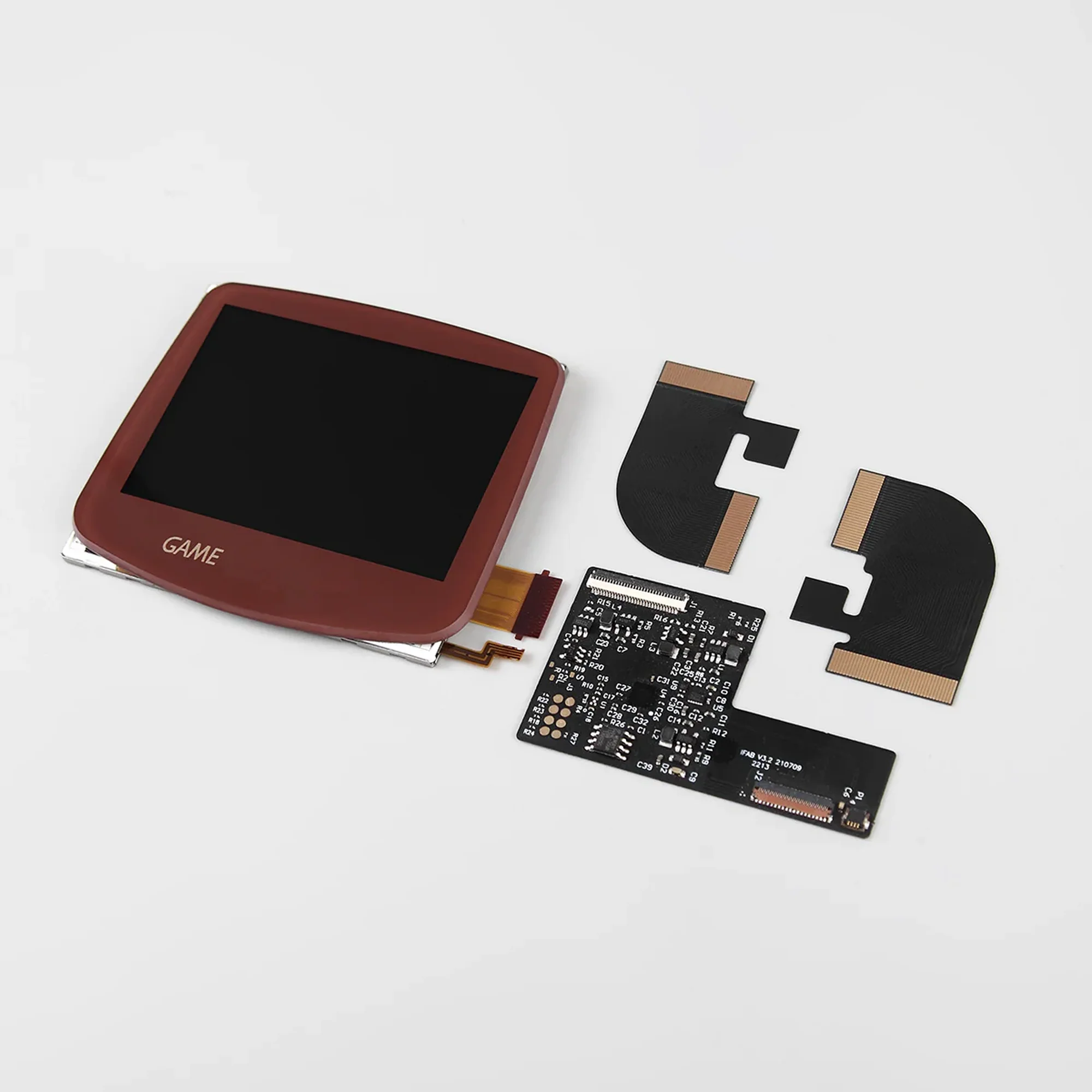

Product Includes:

TFT LCD ×1
Main ribbon ×1
32pin ribbon ×1
40pin ribbon ×1
Wires ×3
Laminated Bracket ×1

Installation instructions


NOTES

40pin motherboard needs to remove C54 capacitor.

If you adjust the display window, you need to weld the select L R button

The left and right viewing angles are almost visible, The following perspective is general.
